              | High Standard Specification |
                |

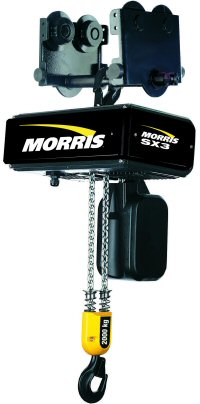

              As standard, SX3 chain hoists provide a high specification:




                    | • |
                    Two speed hoisting  |


                     |
                     |


                    | • |
                    Frequency controlled trolley drives for smooth traversing and minimal load swing  |


                     |
                     |


                    | • |
                    Upper and lower hoist limit switches  |


                     |
                     |


                    | • |
                    Slipping clutch load limiter  |


                     |
                     |


                    | • |
                    Hoist motors insulated to class F, 40% ED rated (3ph)  |


                     |
                     |


                    | • |
                    Ambient temperature range -20°C to +40°C |


                     |
                     |


                    | • |
                    IP55 enclosure protection for hoist and trolley  |


                     |
                     |


                    | • |
                    Zinc plated load chain  |


                     |
                     |


                    | • |
                    Corrosion resistant epoxy powder coated hoist body  |


                     |
                     |


                    | • |
                    48v low voltage contactor control  |


                     |
                     |


                    | • |
                    Plug in control pendant with emergency stop button and IP65 enclosure protection |


               |


              |   |
                |

          |
