A
proven range of pneumatic hoists from 2000kg to 6000kg, based on the S3
high capacity.
- Designed
for operating pressures of 4 to 6 bar.
- For
heavy duty applications (100% duty rating).
- Sensitive
4 button control.
- Oil
bath lubricated planetary gearbox.
- Large
dimension silencer gives low noise emissions.
- Adjustable
spring pressure brake.
- Ideal
for high humidity environments.

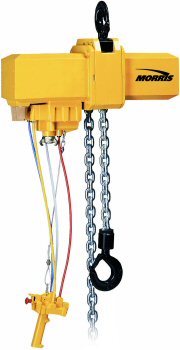

| S3
Pneumatic Chain Hoist |
Capacity
(kg) |
Chain
falls |
Hoist
speed
with rated load
(m/min) |
Height
of lift
(m) |
| 2000 |
1 |
7.4 |
3 |
| 3000 |
1 |
6.0 |
3 |
| 4000 |
2 |
3.7 |
3 |
| 5000 |
2 |
3.4 |
3 |
| 6000 |
2 |
3.0 |
3 |
|
|
