5T Hoist & Runway

Crane Specification:   Technical Resume:


SWL
Hoist type
Duty
Hoist speed
Travel speed
Control
Features

5000kg
418L 4/1 Low headroom
M4
3.3/0.8 m/min
20/5 m/min
Suspended pendant
Weather cover

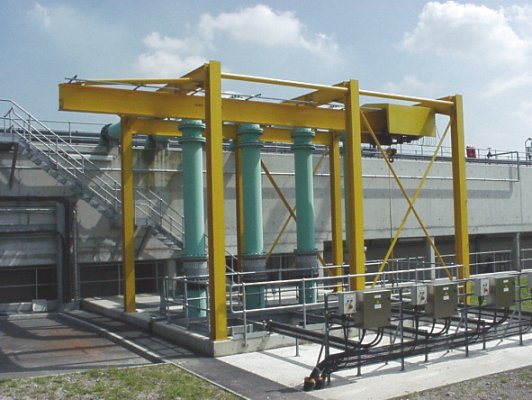

The runway & hoist were supplied and installed by Rochester MHC to Thames Water Authority specification.

The runway steelwork, which was designed specifically for the application to British Standards BS 2853 & BS 449. The structure also supported loads from customer's pipework. The 400 series hoist was ideal for the application being robust and reliable.
