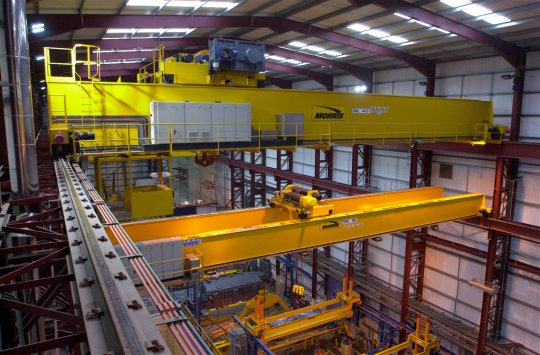

400 Tonne crane for transformer manufacture

Crane Specification:   Technical Resume:

Capacity
Span
Duty
Hoist speed
Aux. Hoist speed
Cross traverse speed
Long travel speed
Mode of Control
400 tonnes
24.805 metres
M3
1 m/min
3.3/0.4 m/min
10 m/min
30 m/min
Radio control with push button back up
Power Slewing Providing 0.5 r.p.m
Condition Monitoring
Main hoist fitted with express speeds 1 m/min, 1.4 m/min, 2 m/min
CE Specification
True vertical lift main hoist
Hoist and long and cross travel drives controlled by inverters
