10 Tonne Slewing Crane For Fundia Special Bar AB

Crane Specification:   Technical Resume:


Capacity
Span
Hoist Classification
Lifting Class
Loading Group
Hoist Speed
Cross Traverse Speed
Long Travel Speed
Mode of Control

10 tonnes
31.16 metres
3M
H2
B3
5/1.2 mpm
20 mpm (inverter control)
60 mpm (inverter control)
Akerstrom Radio Control & Standby Pendant

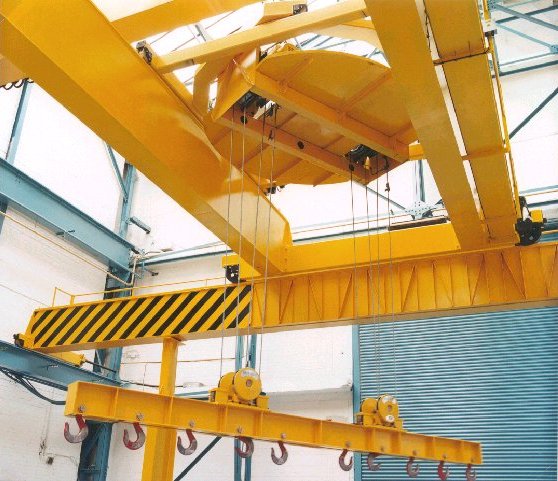

This specially designed 4-400 series crane allows rotation of crab through 270o within one minute. Thus enabling steel loads to be positioned precisely during operation. Two point lift crab units with lifting points are reeved through two bottom blocks into a 10 tonne SWL lifting beam comprising off ten, 5 tonnes fixed single point load hooks.. Additional features include crab platforming, crane walkway and load weighing device with LCD display. The crane was supplied to the Swedish market therefore the crane was designed in accordance with IKH norms.
