60/30 Tonnes Steel Casting Crane For Uddeholm Tooling AB

Crane Specification:   Technical Resume:

Capacity
Span
Hoist Classification
Lifting Class
Loading Group
Cross Traverse Speed
Long Travel Speed
Auxiliary Speed
Motorised Slewing Bottom Block
Mode of Control
60/30 tonnes
19 metres
3M
H3
B5
20 mpm (4 notch inverter control)
40 mpm (4 notch inverter control)
8 mpm (4 notch inverter control)
1.0 mpm Inverter Controlled
Akerstrom Radio Control & Standby Pendant

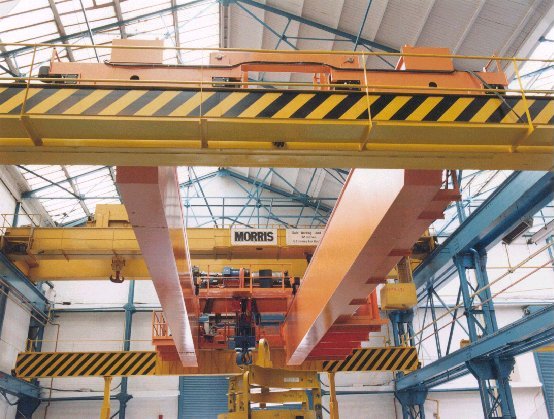

The 5-500 series crane supplied to Uddeholm Trading are designed in accordance with Swedish IKH norms and was developed for handling special steel castings. The 5-500 series crane supplied was designed specially to our customer needs. One specific detail was that the main and auxiliary hoists were fitted with duplicate motors, brakes, gearboxes, rope diameters, drum diameters and control panels to provide inter- changeability between hoists in the event of a breakdown. The crane was erected on Morris in-house test gantry, capable of taking up to 100 tonnes total weight. Morris is the only UK crane manufacturer to offer this permanent facility.
