35 Tonnes Coil Handling Crane For Avesta Sheffield AB, Sweden

Crane Specification:   Technical Resume:

Capacity
Span

Hoist Classification

Lifting Class
Loading Group
Hoist Speed
Cross Traverse Speed

Long Travel Speed
Mode of Control

 35 tonnes
 12.922 metres
3M

H3

B5

 8 mpm
 20 mpm
50 mpm

Akerstrom Radio Remote Control

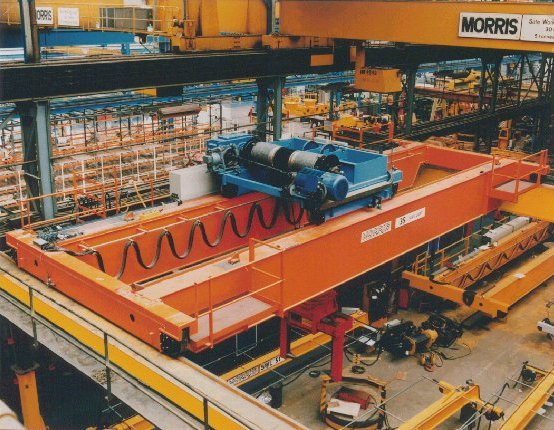

The crane above was designed in accordance with the Swedish IKH norms to handle steel coils upto a maxium of 35 tonnes capacity. The crane was fitted with equipment to allow for future semi-automatic operation. The main hoist was controlled via a 6 step electronic speed control system. Inverters are fitted to the cross traverse and long travel motions to provide infinitely variable controlled acceleration/deceleration. Limit switches are fitted to all motions. Operation of the crane was from an Akerstrom radio remote control with standby pendant. Below the main hook hangs coil handling tongs suppled from Somers Engineering.
