100/10 Tonnes Melting/Casting Crane For Beloit Walmsley Ltd

Crane Specification:   Technical Resume:

Capacity
Span
Duty
Hoist Speed for loads > 40t
Hoist Speed
for loads < 40t
Auxiliary Speed

Cross Traverse Speed

Long Travel Speed
Mode of Control
 100/10 tonnes
 19.05 metres
M7
 2.7 mpm (inverter control)
6.7 mpm (inverter control)
19.1 mpm (inverter control)

 24 mpm (inverter control)
 76 mpm (inverter control)
Enclosed Cabin & Radio Control Unit

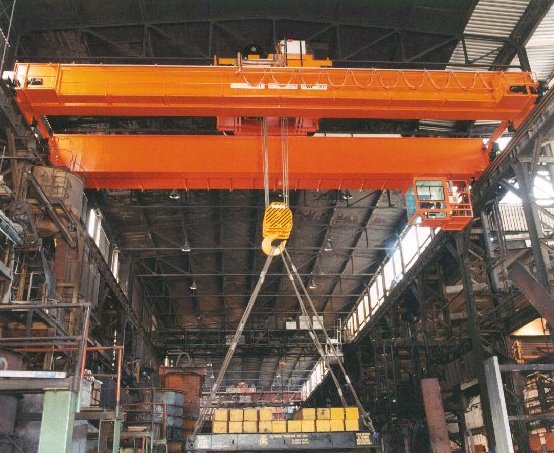

The above 5-500 series crane is used for transferring tonnes molten metal to castings to produce 6 ft. diameter paper drying cylinders. The hoist speed is set for the maximum speed when operating at loads upto 40 tonnes. Above 40 tonnes the hoist will automatically transfer to the slow speed. Additional features include heatshield below the hoist, slack rope detection, maintenance walkway and crab platforming.
