65/25 Tonne Foundry Crane For Hitech Integrity Casting

Crane Specification:   Technical Resume:

Capacity
Span
Duty
Hoist Speed
Auxiliary Speed
Cross Traverse Speed
Long Travel Speed
Mode of Control
 66/25 tonnes
 17.304 metres
M6
3.5 mpm (variable control)

7.5 mpm (variable control)

20 mpm (inverter control)

30 mpm (inverter control)

Radio Control & Standby Pendant

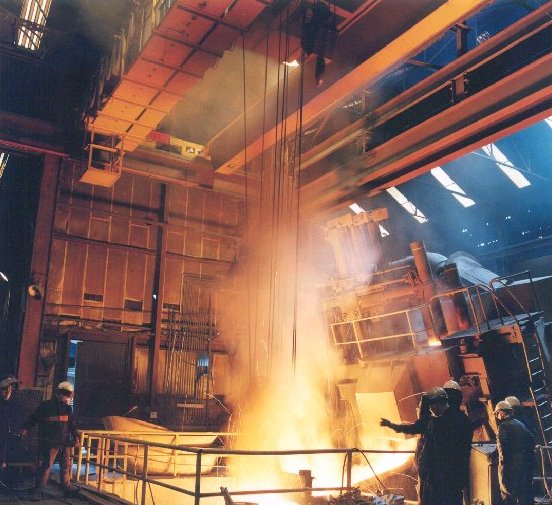

This impressive foundry crane was the second order received from Hitech Integrity Castings. The cranes are specially designed to transfer molten metal from ladle to mould and subjected to high temperature conditions. Precise operation of the crane when lowering the ladle was achieved via infinitely variable controlled acceleration/deceleration. 110% overload detection device and display was fitted as a special feature along with halogen floodlights and crane walkway. Operation of the crane was via radio remote control with emergency standby pendant.
