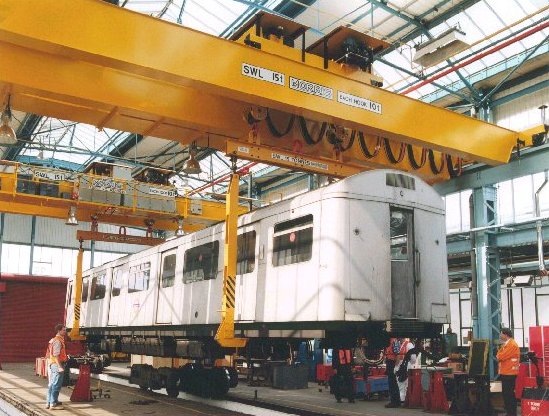

15 Tonne Tandem Lifting Railway Workshop Crane for LUL, Upminster

Crane Specification:   Technical Resume:

Maximum Capacity
Single Hoist Capacity
Span
Duty
Hoist Speed
Cross Traverse Speed
Long Travel Speed
Mode of Control
15 tonnes
10 tonnes
15 metres
M5/M6
9 mpm (variable control)
16 mpm (variable control)
32 mpm (variable control)
Radio Control unit & Standby Pendant
Morris overcame the problem of mechanically latching together a pair of cranes from the floor level which our competitors had previously tried and been unsuccessful in the past. Each 5-500 series crane supplied had two hoists, capable of lifting 10 tonnes independently or 15 tonnes in tandem via Master/Slave data link, which was operational from both the radio control and standby pendant. The long travel speed was limited during tandem operation to allow concise operator control. The cranes were fitted with load weighing and overload protection device complete with LCD display for operator confidence.
