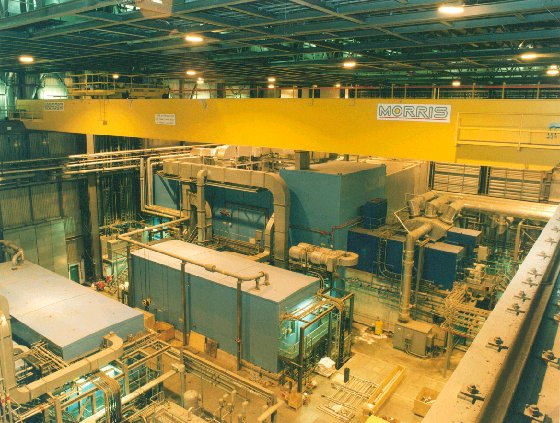

80/16 Tonne Power Station Crane for Keadby

Crane Specification:   Technical Resume:

Capacity
Span
Duty
Height of Lift (Main & Aux.)
Hoist Speed

Cross Traverse Speed

Long Travel Speed
Auxiliary Speed
Mode of Control

 80/16 tonnes
 38.8 metres
M3/M4
17 metres
2/0.2 mpm

 10/1.0 mpm
 16/1.6 mpm
8/0.8 mpm

Radio Pendant
The 5-500 series cranes were developed in the early 1990's to produce a heavy duty application crane specifically to the customer needs. The large span crane was supplied with eight wheel bogies to reduce wheel loads. Special features include variable speed on the hoist, CT and LT motions, load sensing device on the hoist motion, walkway, crab platforming, electric's bay, handlamp sockets, 110v power sockets, floodlights and limit switches all motions.
