1 Tonne 4-400 Series Semi - Goliath Crane for Matsuura

Crane Specification:   Technical Resume:

Capacity
Span

Duty

Height of Lift

Hoist Speed

Cross Traverse Speed
Long Travel Speed

Mode of Control
1 tonnes
6.00 metres

M5
 3.00 metres
5/1.2 mpm

20/5 mpm

40/10 mpm

Mobile Pendant

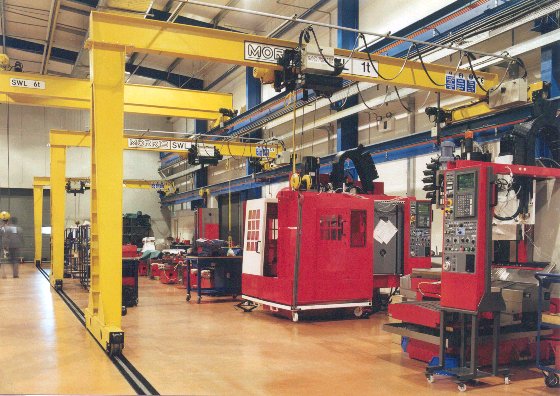

Semi-Goliath cranes are designed, manufactured and based on the 4-400 series or 5-500 series range dependent upon application. Legs are attached to the bridge structure at one end, to enable the crane to run on the ground track, and standard crane end carriages on the other side to enable the crane to run on gantry beam and rail. These cranes are typically used for production areas where cranes are continually required for confined area applications. Morris have supplied nine, 1 tonne semi goliath cranes, two, 6 tonne 4-400 series double girder cranes and one, 2 tonnes 4-400 series single girder cranes.
